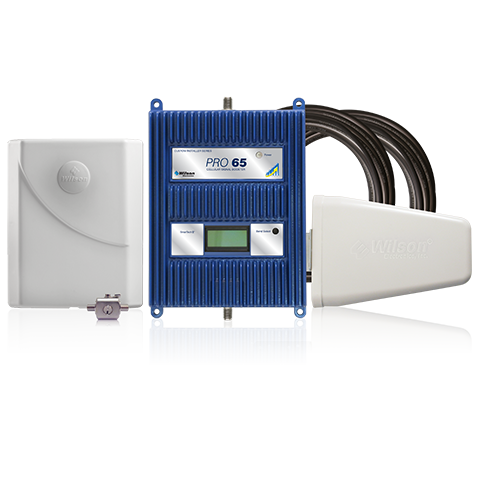

PRO 65 KIT
All Bands, Multi-Carrier Cellular Signal Booster
The Pro 65 from Wilson Electronics amplifies weak cellular signals
to provide reliable voice and data coverage - including 4G - inside
homes and other buildings where signals may not penetrate. The Pro 70
Plus features a self-optimizing microprocessor with a built-in graphical
signal meter. The uplink and downlink power display makes it easy for the
integrator to determine the direction of the cell tower and the strength of
the available signal, which greatly reduce installation time.
Like all Wilson boosters, the Pro 65 features cell site protections that prevent any possibility of interference with cell towers. The Pro 70 Plus, and all CI models from Wilson Electronics, are sold only to custom technology integrators and are not available through any online or retail source. Wilson Electronics quality and an industry-leading three year warranty make the Pro 65 the clear choice for the professional technology integrator.
Like all Wilson boosters, the Pro 65 features cell site protections that prevent any possibility of interference with cell towers. The Pro 70 Plus, and all CI models from Wilson Electronics, are sold only to custom technology integrators and are not available through any online or retail source. Wilson Electronics quality and an industry-leading three year warranty make the Pro 65 the clear choice for the professional technology integrator.
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
Specs
| Frequency | 698-746 MHz |
| 746-787 MHz | |
| 824-894 MHz | |
| 1850-1995 MHz | |
| 1710-1755/2110-2155 MHz | |
| Max Gain | 60dB |
| Power Req | 110-240 V AC, 50-60 Hz, 20 W |
| Connectors | F-female |
| Dimensions | 8.875 x 6.0 x 1.5 in 22.5 x 15.2 x 3.8 cm |
| Weight | 2.81 lbs or 1.27 kg |
| Integrated Power Meter | No |
| Enhanced Indoor Coverage Under Certain Signal Conditions | No |
FEATURES
- Boosters sold in kits with antennas
- Expansion kits available for large scale installations
- Self-optimizing design minimizes installation time
- Compatible with all North American cellular networks
- Three year warranty
- FCC and Industry Canada certified
- Graphical uplink & downlink power meter
BENEFITS FOR USERS
- Faster, cleaner data transfers
- Strong, reliable connections even in weak signal areas
- Enhanced indoor coverage area under certain signal conditions
- Extends battery life of cellular devices
BENEFITS FOR INSTALLERS
- New source of revenue
- Solves a common customer problem - weak cell signals
- No-cost training and certification
- No-cost installation design support
- Lead referral program for certified installers
- Add-on sale to existing customers
- Simplified cell tower location
